Ultra-Track Berm®

Portable plastic pellet containment

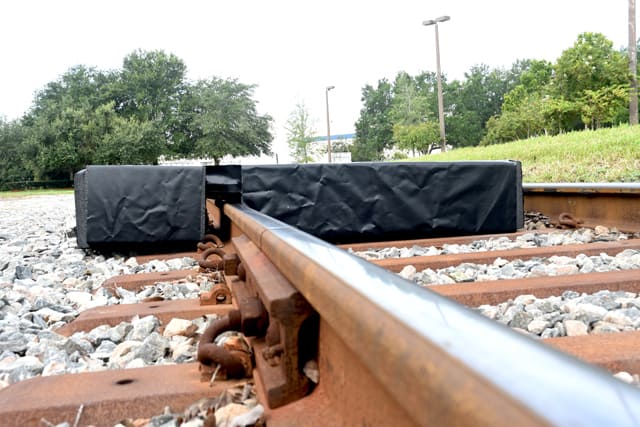

Permanent track pans protect your regular unloading spots. Sometimes, though, you need containment wherever the railcar happens to be. The Ultra-Track Berm is a portable railroad containment unit that one person can move quickly to the point of a spill. It is ideal for capturing plastic pellets and other microplastics during loading, unloading, and clean-out operations.

A dual-sump design protects the area on both sides of the rail. The berm weighs only 24 lbs., and its heavy-duty PVC construction stands up to harsh railroad conditions.

Key Features

Lightweight and portable

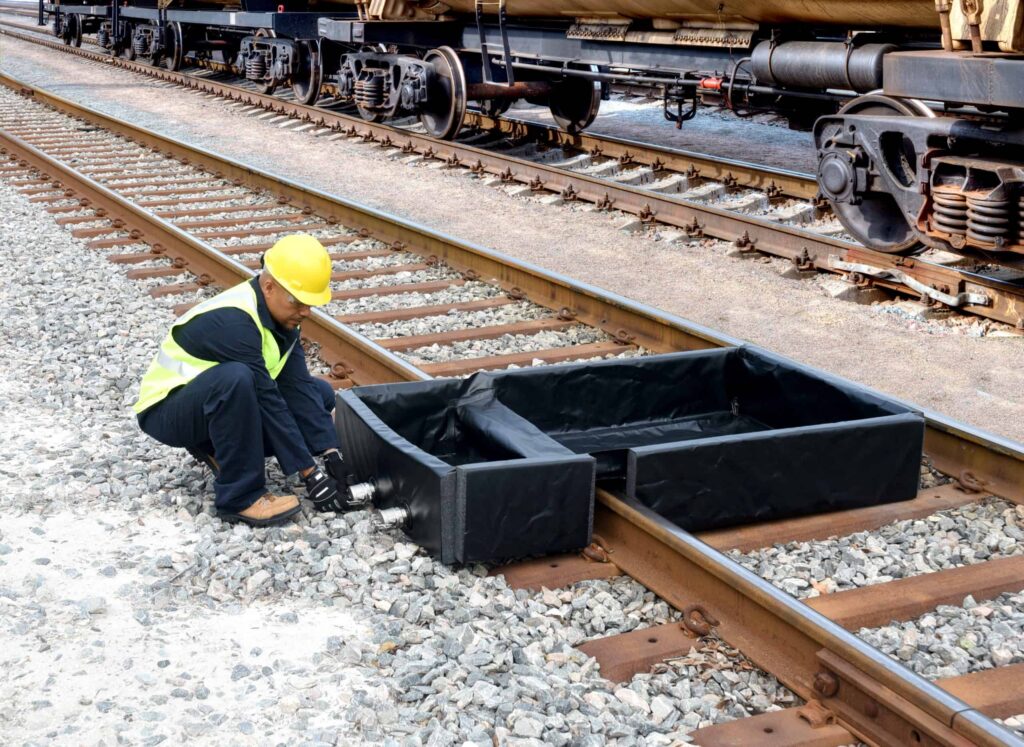

One person can place it under a railcar quickly.

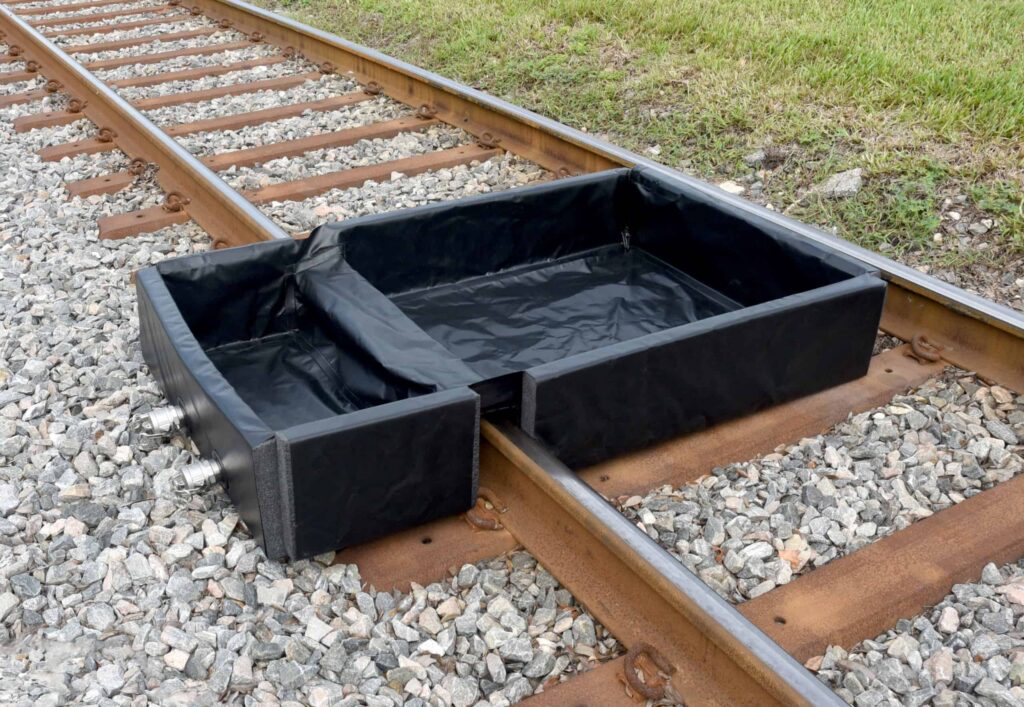

Dual-sump design

Dual-sump design protects the area on either side of the rail.

Foam sidewalls

Closed-cell polyethylene (LLDPE) foam provides secure sidewall structure.

Durable PVC

Durable 40 oz. (42 mil) PVC construction withstands harsh railroad conditions.

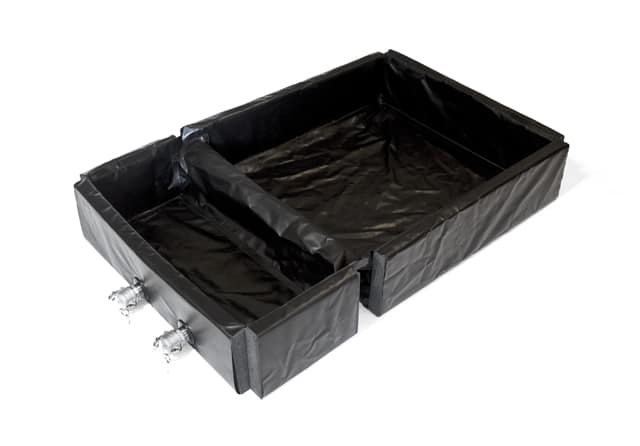

Camlock drainage

Two stainless steel camlock fittings allow quick, leak-free drainage.

Where to Use It

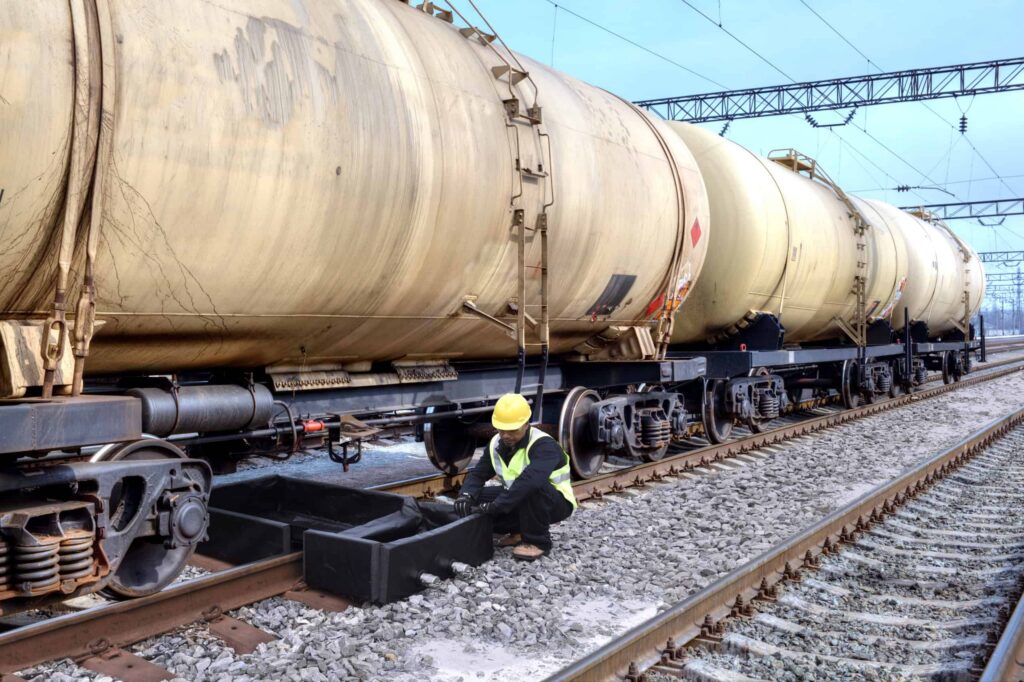

Railcar loading and unloading
Railcar clean-out operations

Product Options

Part # / Model
Size (in.)
Capacity (gal.)
Weight (lbs.)
#8490
40 oz. (42 Mil) PVC
UPC 808416084900

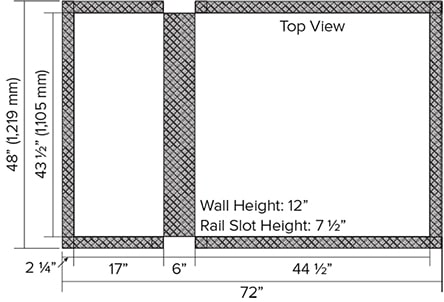

72 x 48 x 12
1828.8 x 1219.2 x 304.8 mm
144
545 L
24
10.9 kg

More Options

Part # / Model
Size (in.)
Weight (lbs.)
#8298

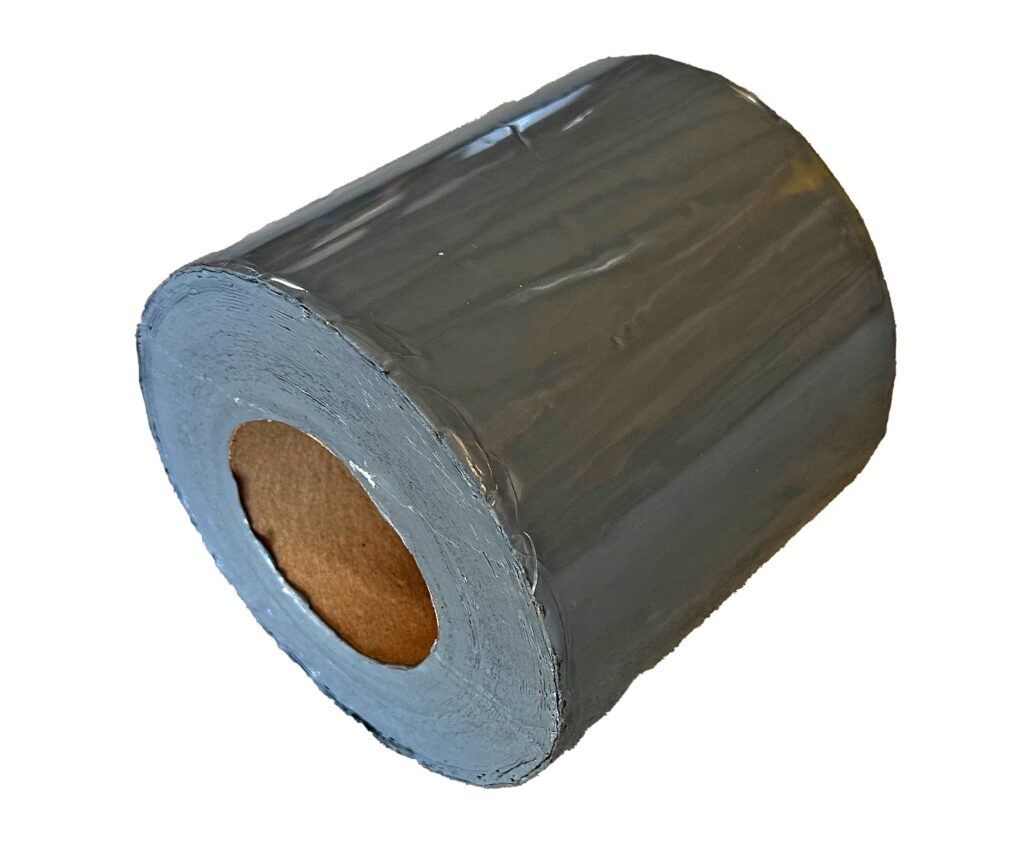

PE Repair Tape 4"
UPC 808416102468
PE Repair Tape 4", part #8298
600 x 4 x 6
15240 x 101.6 x 152.4 mm
3
1.4 kg
#8299
PE Repair Tape 6"
UPC 808416102475
PE Repair Tape 6", part #8299
600 x 6 x 6
15240 x 152.4 x 152.4 mm
6
2.72 kg

WARNING: Part #8490 can expose you to chemicals including Di(2-ethylhexyl) phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Product Documentation

Frequently Asked Questions

How portable is the Ultra-Track Berm?
It is built with heavy-duty materials and components but weighs only 24 lbs. (10.9 kg), so it can easily be carried to wherever it is needed.

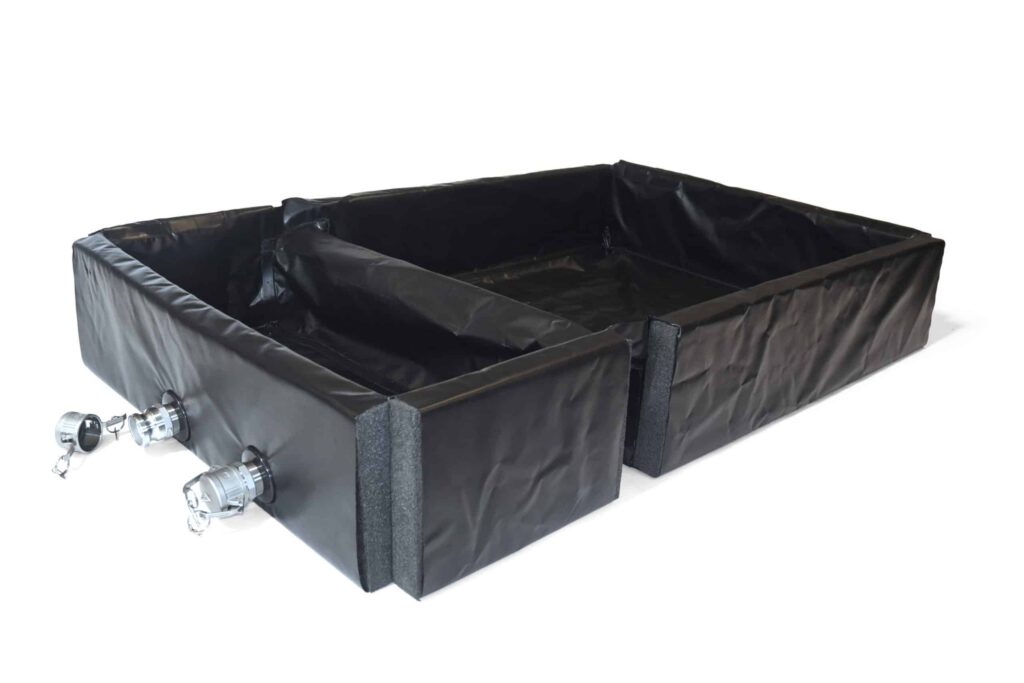

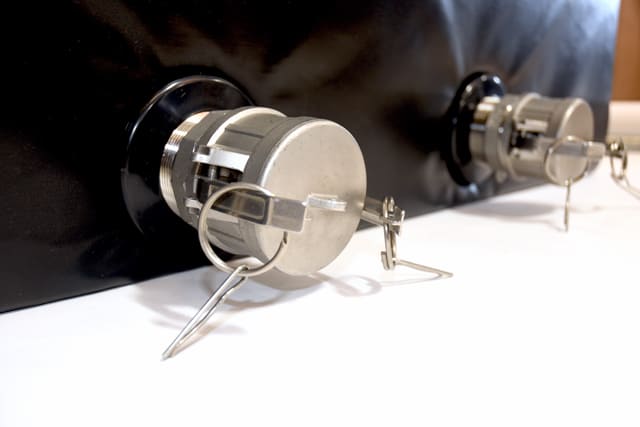

What are the steel connectors for?
Those are camlock fittings. Hoses (not included) can be connected to them to channel material to a holding tank or other containment area in the event of a large spill.
