Plastic Pellet Containment

A Resource by UltraTech International, Inc.

Ultra-Drain Seal®

Completely seal storm drains to protect our waterways during emergency spills

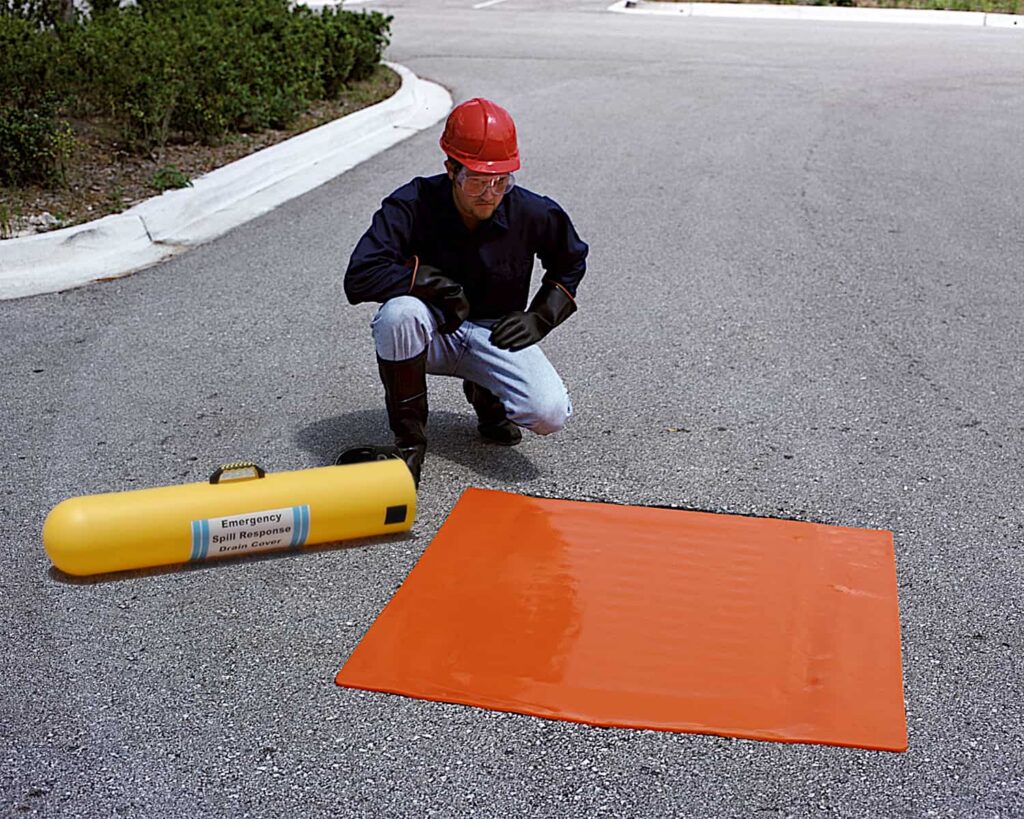

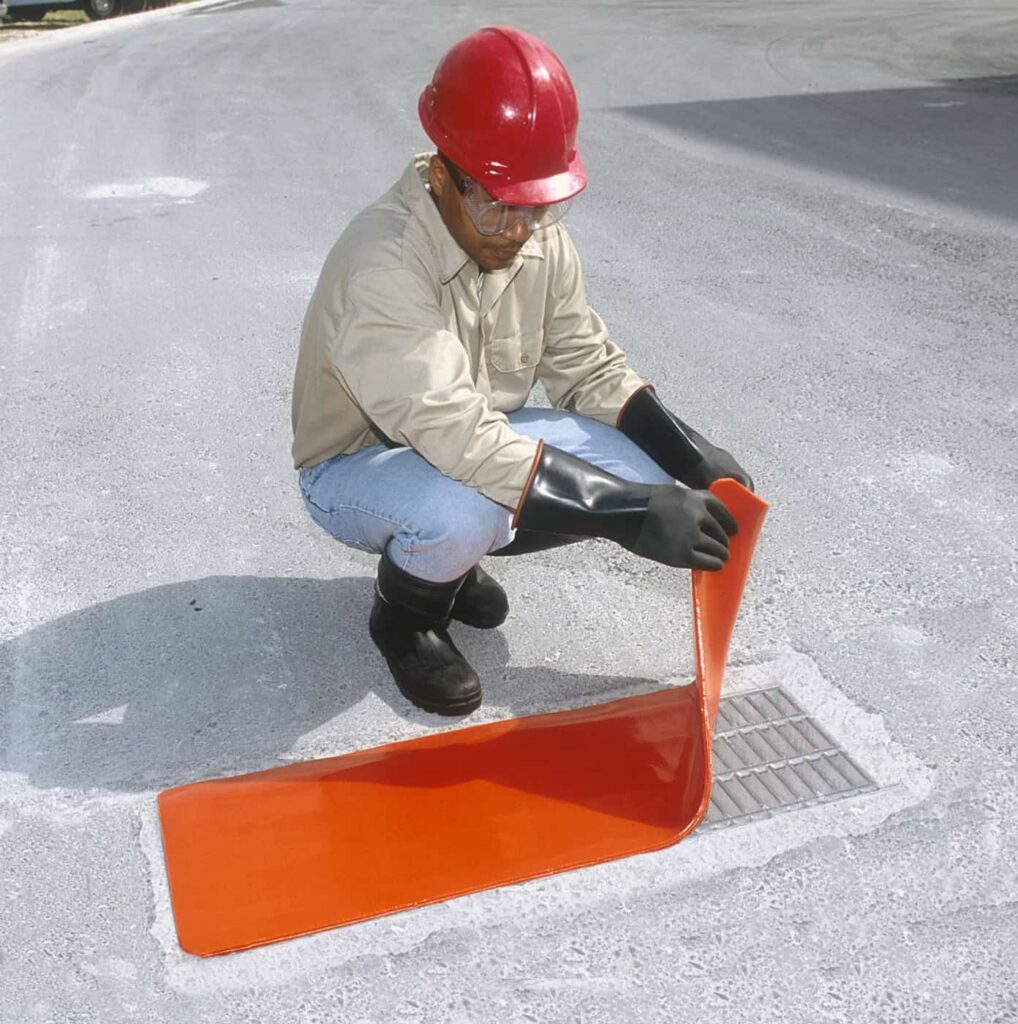

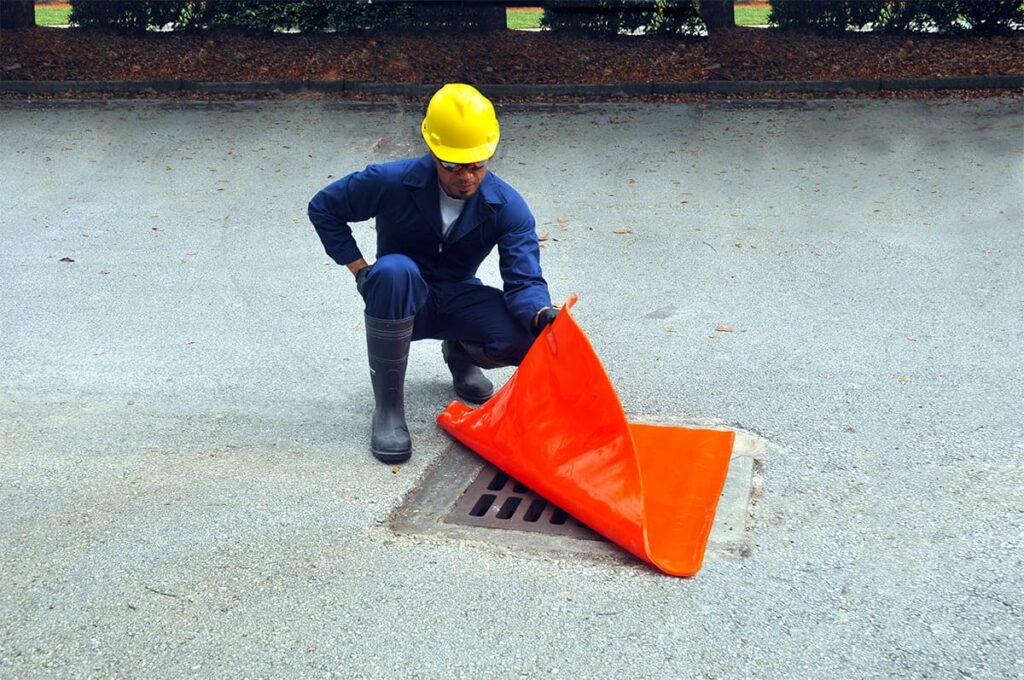

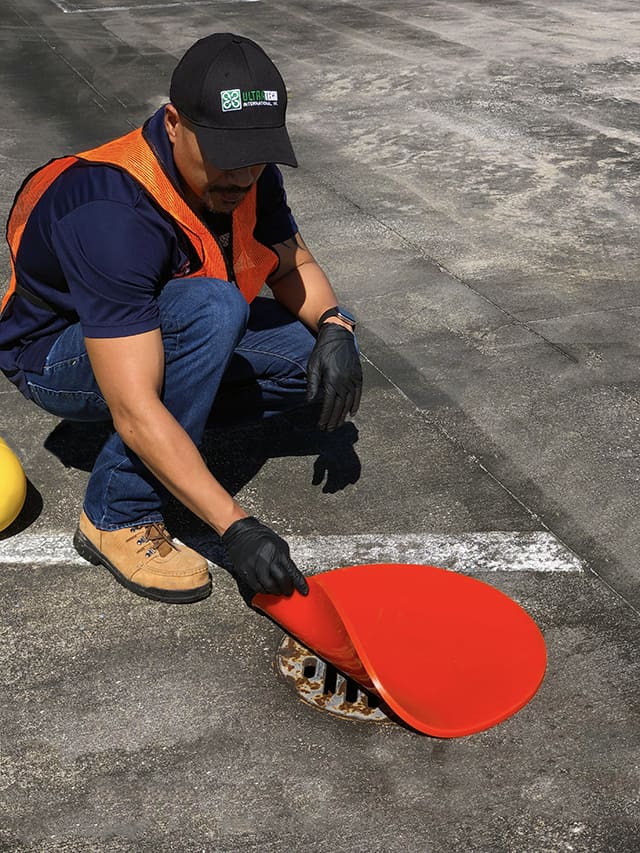

When pellets spill near a storm drain, you need to close that path to the waterway right away. Use the Ultra-Drain Seal in an emergency, or temporarily during loading and unloading operations, to keep plastic pellets and other materials out of storm drains.

It is made from flexible, non-absorbing polyurethane with a reinforced, tear-resistant mesh inside. Either side seals most drains, so there’s no wrong way to lay it down. That makes it a valuable part of any emergency response plan, spill kit, or stormwater management program.

Important: The Ultra-Drain Seal is not intended for long-term outdoor use (more than two hours). Extended UV exposure and/or heat can degrade the product. For longer applications, ask about the Ultra-Drain Seal Plus.

Key Features

Double-sided seal

Both sides seal most drains, so no orientation is required.

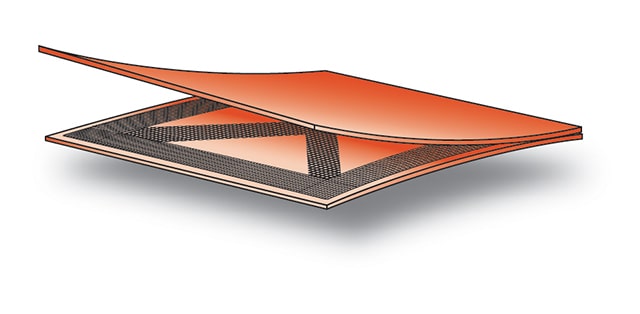

Reinforced polyurethane

Tear-resistant mesh sandwiched between polyurethane layers for durability and flexibility.

Chemical resistant

Resists oil, water, and most aggressive chemicals.

Reusable

Cleans with soap and water.

Wall mount option

Optional Ultra-Drain Seal Wall Mount Units allow "grab and go" emergency response.

Many shapes and sizes

Square, round, and rectangular sizes. Custom shapes and sizes are available.

Where to Use It

Storm drains near loading and unloading operations, used temporarily during transfers
Emergency pellet spill response
Spill kits and stormwater management programs

Helps Comply With

Stormwater Management Regulation 40 CFR 122.26

Product Options

Part # / Model
Size (in.)
Weight (lbs.)
Square
#2126
Drain Seal, Square
UPC 808416021264
18 x 18 x 0.4
457.2 x 457.2 x 9.7 mm
5
2.3 kg
#2127
Drain Seal, Square
UPC 808416021271
24 x 24 x 0.4
609.6 x 609.6 x 9.7 mm
8
3.6 kg
#2130
Drain Seal, Square
UPC 808416021301
36 x 36 x 0.4
914.4 x 914.4 x 9.7 mm
20
9.1 kg
#2131
Drain Seal, Square
UPC 808416021318
42 x 42 x 0.4
1066.8 x 1066.8 x 9.7 mm
23
10.4 kg
#2132
Drain Seal, Square
UPC 808416021325
48 x 48 x 0.4
1219.2 x 1219.2 x 9.7 mm
36
16.3 kg
#2133
Drain Seal, Square
UPC 808416021332
54 x 54 x 0.4
1371.6 x 1371.6 x 9.7 mm
41
18.6 kg
Circular
#2134
Drain Seal, Circular
UPC 808416021349
12 x 12 x 0.4
304.8 x 304.8 x 9.7 mm
3
1.4 kg
#2135
Drain Seal, Circular
UPC 808416021356
20 x 20 x 0.4
508 x 508 x 9.7 mm
6
2.7 kg
#2136
Drain Seal, Circular
UPC 808416021363
30 x 30 x 0.4
762 x 762 x 9.7 mm
11
5 kg
#2137
Drain Seal, Circular
UPC 808416021370
42 x 42 x 0.4
1066.8 x 1066.8 x 9.7 mm
19
8.6 kg
Rectangular
#2124
Drain Seal, Rectangular
UPC 808416021240
58 x 18 x 0.4
1473.2 x 457.2 x 9.7 mm
16
7.3 kg
#2125
Drain Seal, Rectangular
UPC 808416021257
58 x 36 x 0.4
1473.2 x 914.4 x 9.7 mm
26
11.8 kg

Product Documentation

Frequently Asked Questions

What size Ultra-Drain Seal should I use?
For best results, use a drain seal at least 6″ larger than the outside of the grate.

Can I leave an Ultra-Drain Seal on the drain for long periods?
No. The Ultra-Drain Seal is made with urethane and will break down with extended UV exposure. Leave it in place only as long as needed to contain and clean up a spill. Long-term outdoor use is not recommended.

Can I drive over an Ultra-Drain Seal?
No. It should not be driven over under any circumstances. The soft material can be damaged by vehicle tires and other equipment.

Is the Ultra-Drain Seal reusable?
Yes, provided it has not been exposed to a chemical that has caused degradation.

How do I clean it?
A standard soap-and-water mixture is usually all you need. Let it air dry, then return it to its original packaging.

Can I cut the Ultra-Drain Seal?
Cutting is NOT recommended. The reinforced mesh is sandwiched between layers of urethane, and cutting may cause the unit to delaminate.

Are custom sizes or shapes available?
Yes. Please contact our customer service department.

What is the best way to store it?
Store it in a cool, dry area in its shipping box. Keep the cardboard tube and plastic sheeting in place to prevent the seal from sticking to itself. Optional hard-plastic carrying cases (wall-mounted or truck-mounted) are available. The physical properties of softer urethane can change with temperature, humidity, and UV exposure, so inspect stored seals regularly.
