Ultra-Pellet Trap

Stop plastic pellets and other debris from entering stormwater drains and polluting our waterways

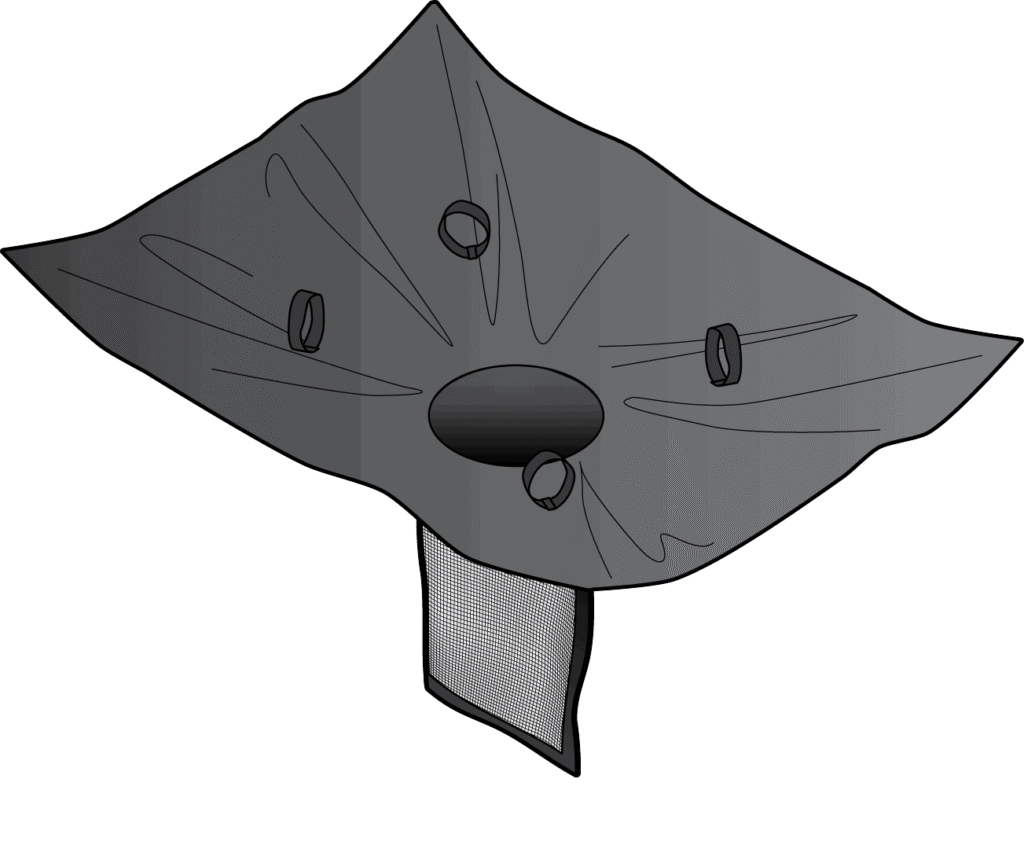

Storm drains connect to waterways everywhere, and they are the last and most critical line of defense against pellet loss. The Ultra-Pellet Trap is a catch basin insert engineered to filter microplastics (“nurdles”) and other stormwater waste before they become a problem in the water system. It also filters out other contaminants, including oil, eroded soil, debris, and fuel from vehicles.

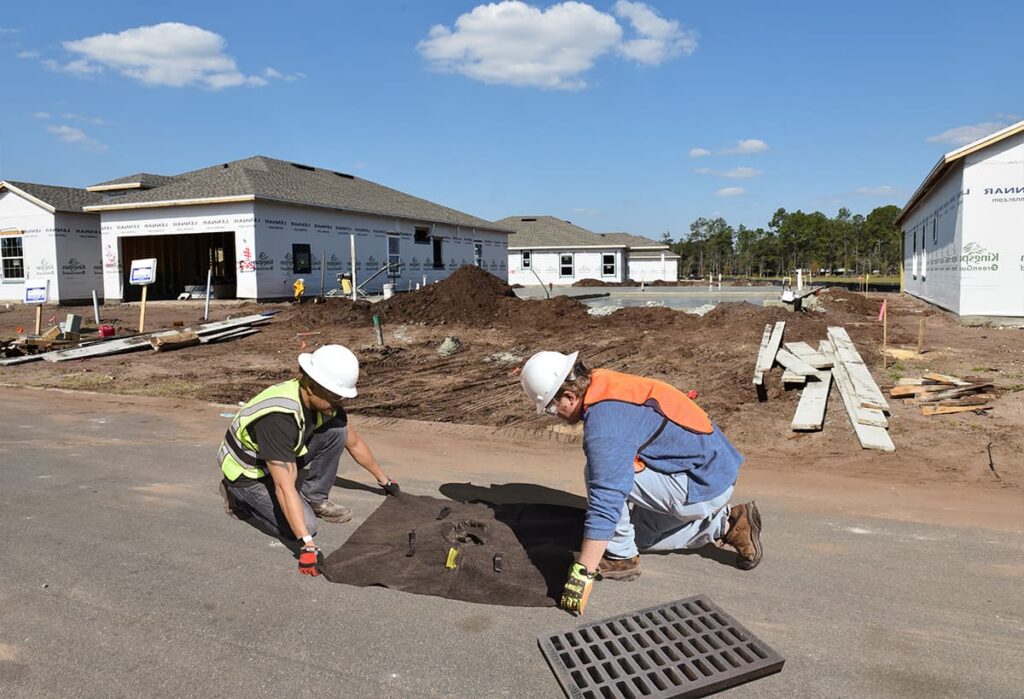

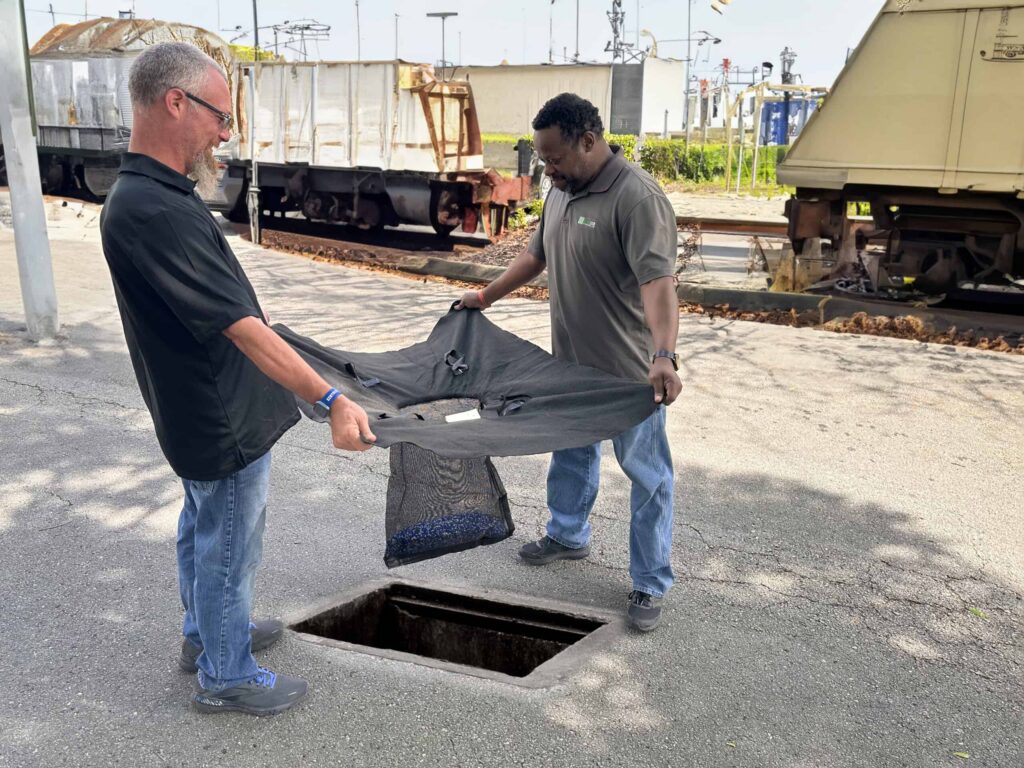

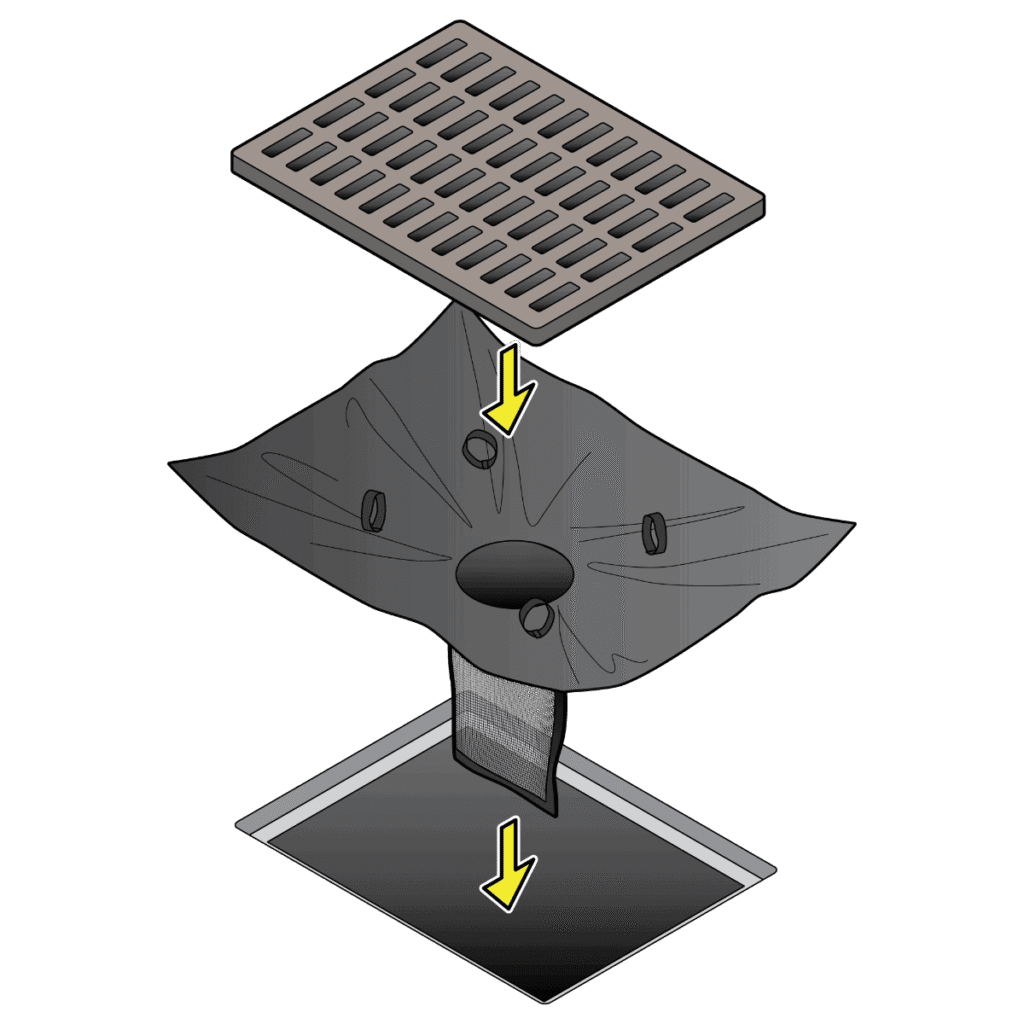

Installation is simple: raise the grate, place the Ultra-Pellet Trap over the opening, and carefully lower the grate back into place.

Key Features

Catches microplastics

Designed to catch microplastics and floatables such as leaves, cigarette butts, and paper goods.

Easy installation

Raise the grate, set the trap over the opening, and lower the grate back in place.

Durable geotextile

Durable geotextile construction resists tearing and degradation, even in demanding industrial and high-traffic environments.

Flexible fit

Flexible fit works with a wide range of catch basin sizes and configurations.

Lifting straps

Built-in lifting straps make removing a full trap easier.

Reusable in most cases

Empty it and put it back.

Where to Use It

Plastics processing and manufacturing plants

Industrial facilities

Parking lots and yards where stormwater runoff can carry pellets, oil, soil, debris, and fuel

Helps Comply With

Stormwater Management Regulation 40 CFR 122.26

National Pollutant Discharge Elimination System (NPDES)

Total Maximum Daily Load (TMDL)

Product Options

Part # / Model

Size (in.)

Capacity (cu. ft.)

Pack Qty

#9227

Ultra-Pellet Trap, single

UPC 808416092271

48 x 36 x 18

1219.2 x 914.4 x 457.2 mm

1

28 L

1

#9229

Ultra-Pellet Trap, 10-pack

UPC 808416092295

48 x 36 x 18

1219.2 x 914.4 x 457.2 mm

1 each

28 L each

10

Product Documentation

Installation Instructions

Frequently Asked Questions

How much water can the Ultra-Pellet Trap handle?
The Ultra-Pellet Trap has a flow rate of 90 gpm/ft².

How long will an Ultra-Pellet Trap last?
It is hard to give a definitive answer because several factors determine its life expectancy, including the amount of rainfall and the amount and type of pollutants it is exposed to. We recommend inspecting the unit after each significant rain event.

Can the Ultra-Pellet Trap be reused?
Yes, in most cases. If it fills with sand, silt, and sediment, remove it from the drain, empty it, and put it back. If it becomes saturated with oil, gas, or other hydrocarbons, we recommend replacing it instead of reusing it.

Is the Ultra-Pellet Trap difficult to install?
Usually the hardest part is handling the catch basin grate. A second set of hands is recommended.

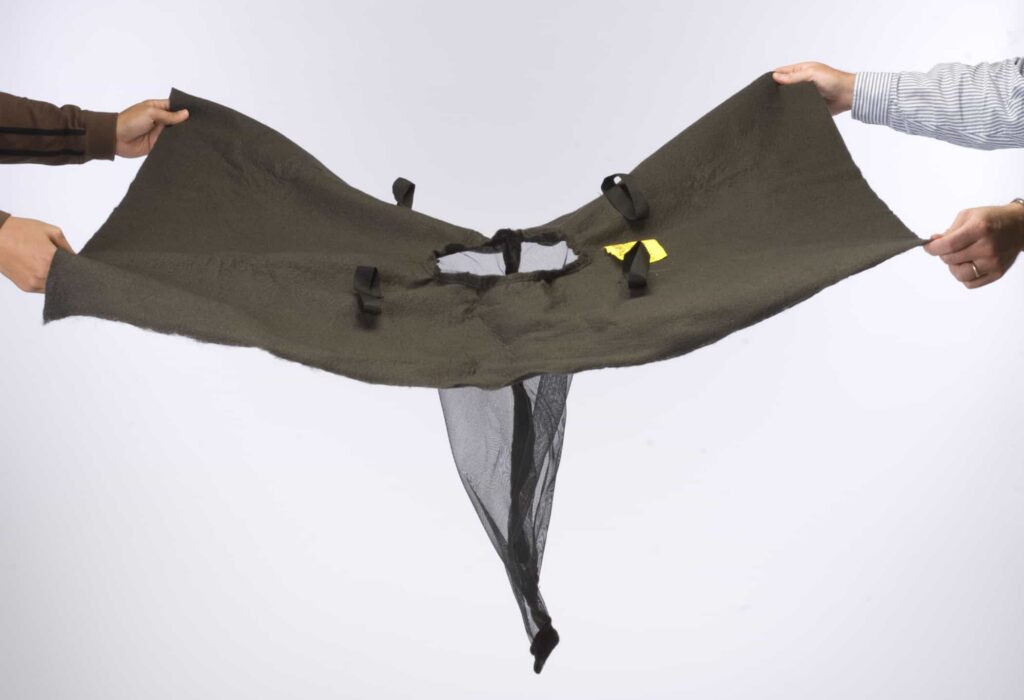

What are the straps sewn into the top of the Ultra-Pellet Trap used for?
They are used to remove a full trap from the catch basin. BEFORE lifting the grate, fish the four straps up through the grating. Then insert a piece of rebar, a steel rod, or a shovel or broom handle through each set of straps to lift the trap out.

Do I have to trim the skirt after installation?
No. You can trim any excess material after the grate is in place with heavy-duty scissors or a utility knife, but it isn’t required. Leaving it on lets it act as a pre-filter that removes some pollutants before they get below the grate, and it makes the trap much easier to reinstall.
