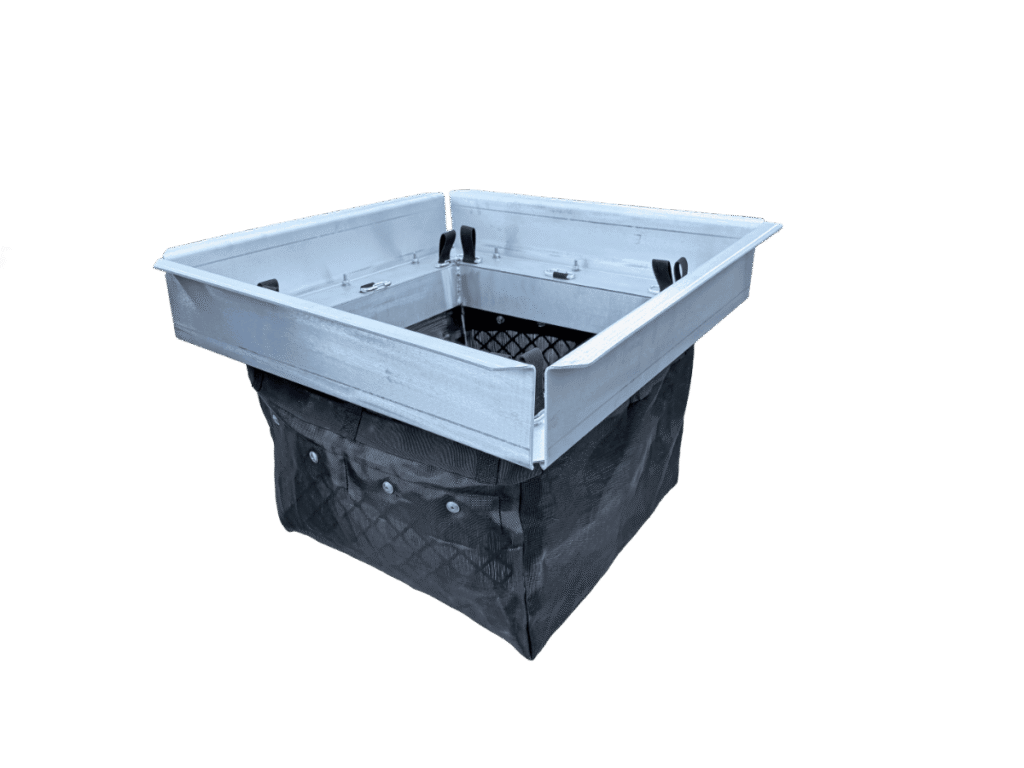

Ultra-Storm Guard Plus®
Heavy-duty, adjustable catch basin filter captures hydrocarbons, plastic pellets, and other contaminants
The Ultra-Storm Guard Plus delivers reliable stormwater management in a simple, efficient design. Its replaceable filter bag has a high treatment flow rate of 145 GPM/ft² and captures fine sediments and solids from stormwater runoff, which makes it well suited to plastic pellet containment.

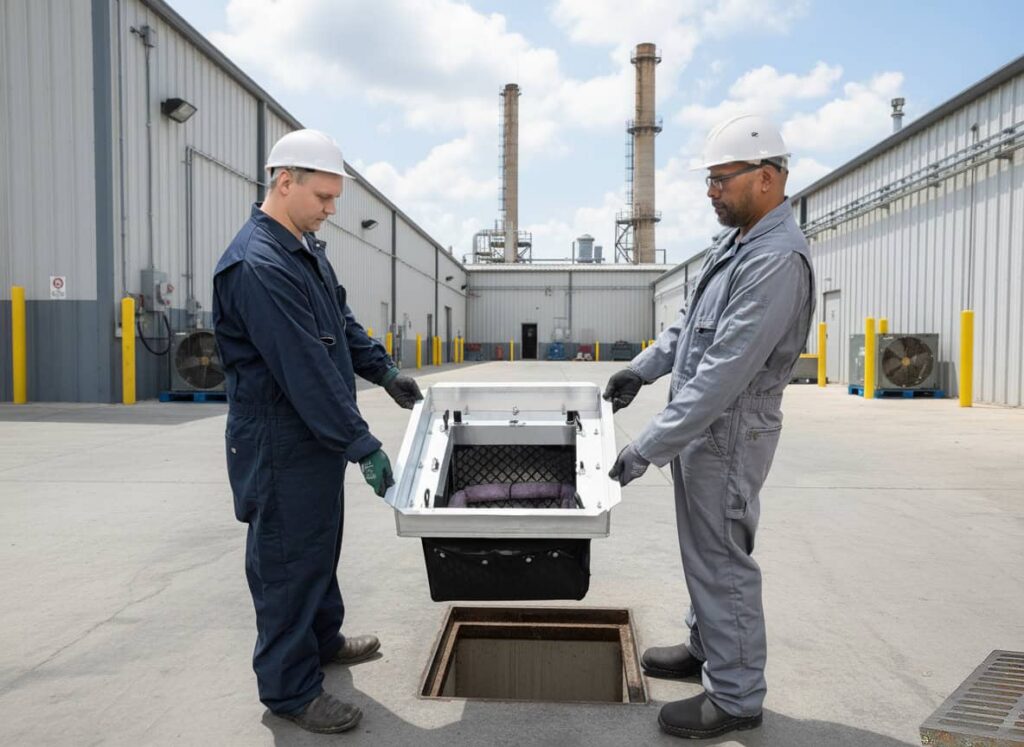

For sites where vehicles and equipment put hydrocarbons into stormwater, an integrated Ultra-Filter-Tex oil boom handles that too, and it can be removed easily if you don’t need it. Installation is quick: lift the storm grate, place the Storm Guard Plus into the catch basin, and replace the grate.
Key Features
High-flow filter bag
Replaceable filter bag with a high treatment flow rate of 145 GPM/ft² captures fine sediments and solids. Great for plastic pellet containment.
Integrated oil boom
Integrated Ultra-Filter-Tex oil boom for sites with hydrocarbons in stormwater (easily removed if not needed).
Protected bypass
Protected bypass keeps captured sediment and trash stored safely, even during extreme rain events.
Polypropylene basket
Lightweight, flexible polypropylene basket makes the most of catch basin space, which reduces maintenance frequency.
Adjustable fit
Adjustable frame (2" adjustment range) and expandable flanges fit standard and irregular catch basin openings.
Easy maintenance
Easy maintenance by hand or vacuum truck, which minimizes downtime and labor costs.
Works as a prefilter
Also works as a prefilter to protect downstream stormwater BMPs such as detention ponds and infiltration areas.
Fewer components
Fewer components for simpler maintenance and a lower total cost of ownership.
Where to Use It
Parking lots, maintenance yards, and transfer stations where hydrocarbons are also present
Product Options
Part # / Model
Size (in.)
Weight (lbs.)
#9889
2' x 2'
UPC 808416103397
24 x 24 x 30
610 x 610 x 762 mm
30
13.6 kg
#9890
Replacement Sack, 2' x 2'
UPC 808416098907
24 x 24 x 28
610 x 610 x 711 mm
8
3.6 kg
#9891
Custom Size
UPC 808416098914
Custom Size
Varies
#9892
Replacement Sack, Custom Size
UPC 808416098921
Custom Size
Varies
Product Documentation
Questions?
Let’s stop plastic pellet pollution together. If you have questions about any of our products, fill out the form below, and we’ll be in touch soon.
